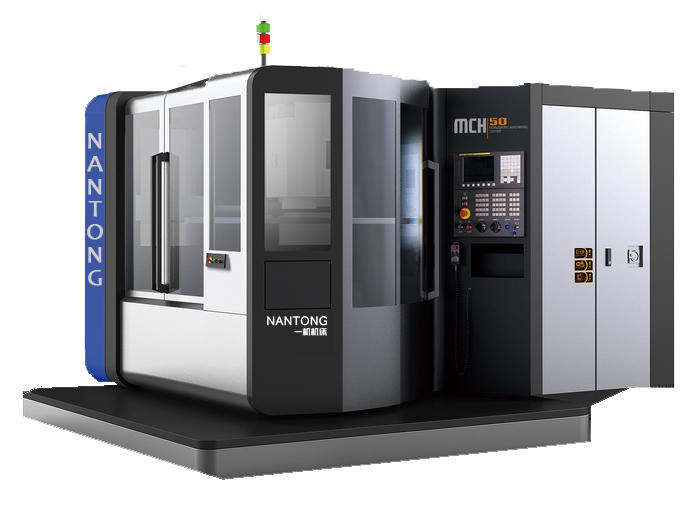

Product Introduction
Parameter: YJ-H50
X-axis travel: 700 mm
Y-axis travel: 580 mm
Z-axis travel: 580 mm
Distance from table to spindle center: 110–690 mm
Distance from spindle end to table center: 120–700 mm
Worktable size: 500 × 500 mm
Maximum table load: 500 kg
Spindle speed: 60–6000 rpm
Spindle taper: BT50
Maximum rotary table speed: 5 rpm
B-axis indexing: 1°
Rapid traverse (X/Y/Z): 24 m/min
Cutting feed rate: 1–10000 mm/min
Number of tools (ATC): 24
Tool change time: 2.7 sec
Maximum tool length: 350 mm
Maximum tool diameter: 120 mm (full) / 200 mm (adjacent) / 230 mm (without
adjacent tool)
Maximum tool weight: 18 kg
Spindle power: 9/11 kW (11/15 kW)
X/Y/Z motor torque: 22/30/22 Nm
Rotary table motor torque: 8 Nm
Hydraulic station power: 4 kW
Coolant pump power: 0.4 kW
Positioning accuracy (X/Y/Z): 0.01 mm
Repeatability: 0.006 mm
Rotary table positioning accuracy: 12″
Rotary table repeatability: 6″
Machine dimensions (L×W×H): 2810 mm
Packing dimensions (L×W×H): 4000 × 2600 mm
Weight (Net/Gross): 12000 kg
Required power capacity: 40 kVA
Operating temperature: -5 to 45°C
Humidity: 0–90%
Air pressure: 0.6 MPa
Hydraulic pressure: 0.5 MPa
Power supply: 50Hz 380V ±10%
