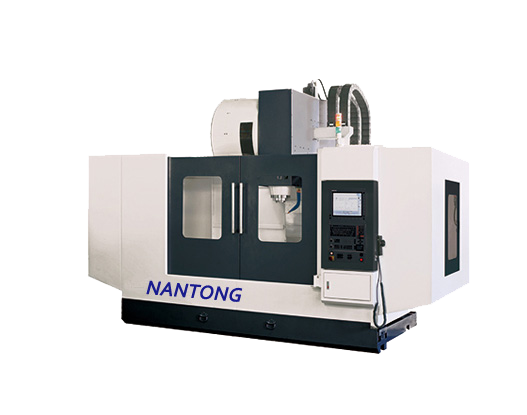

Product Introduction
Technical Specifications
Travel:
X / Y / Z Travel: 2,000 / 900 / 800 mm
X / Y / Z Travel: 78.7 / 35.4 / 31.4 in.
Spindle nose to table surface: 200 – 1,000 mm
Spindle nose to table surface: 7.8 – 39.3 in.
Spindle center to column: 975 mm
Spindle center to column: 38.3 in.
Table:
Table size: 2,200 × 850 mm
Table size: 86.6 × 33.4 in.
T-slot (size × number × pitch): 22 × 5 × 150 mm
Maximum table load: 2,5 kg
Spindle:
Spindle speed: 6 rpm
Spindle taper: BT50 / DIN50 / CAT50
Transmission: Gear head
Feed Rate:
Rapid feed rate (X/Y/Z): 15 / 15 / 12 m/min
Cutting feed rate: 1 – 10 m/min
Automatic Tool Changer:
Tool magazine type: Arm type
Tool storage capacity: 24 tools
Max. tool diameter (full): 125 mm
Max. tool diameter (adjacent empty): 200 mm
Max. tool length: 300 mm
Max. tool weight: 15 kg
CNC Controller & Motors:
CNC Controller: Mitsubishi (* FANUC / SIEMENS / HEIDENHAIN optional)
Spindle motor power: 11 / 15 kW (20 HP)
Axis motor power (X/Y/Z): 4.5 / 7.0 / 4.5 kW
Coolant System:
Coolant pump power: 0.75 HP
Coolant tank capacity: 300 L
Air & Power Supply:
Air source pressure: 6 kg/cm²
Power requirement: 35 kVA
Machine Dimensions:
Overall dimensions (L×W×H): 5,500 × 3,335 × 3,310 mm
Net weight: 16,5 kg
